INTERNAL LINE-UP CLAMPS

No matter what pipe size and wall thickness, we are ready to help you every step of the way

Internal Line-UP Clamps

Internal Line-Up Clamps to Achieve Optimum Pipe Alignment
We have an inventory of robust internal line up clamps that fulfill the most challenging demands of the pipeline projects. The lineup clamps we supply, embodying the vast experience of our engineers and ingenuity of our research teams, ensure precise alignment of pipe sections for welding, irrespective of the terrain and conditions of the project.
The distinguishing feature of our range of internal line up clamp is its versatility; with minimum effort, technicians can adjust a clamp quickly for pipes of different wall thickness, making them preferred designs among professionals in the field.
As our internal line up clamp models are a result of thoughtful design and careful manufacturing processes— as well as a multitude of rigorous internal quality check—they all have proved to be reliable on a range of extreme weather pipeline construction fields.

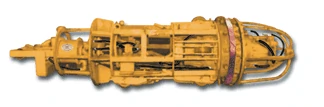

PNEUMATIC CLAMPS
* Available in sizes 6″-60″* Clamps 12″-60″ will cover two pipes sizes by use of conversion kits* Standard clamps are adjustable up to .500 wall thickness, modified clamps are available for heavier wall pipe.* Powered travel drive available on models 12″-60″* For efficient operation, the compressed air pressure should be 180-200 PSI. (12.4-13.8 Bar)* Maximum safe working pressure is 225 PSI (15.5 Bar)
PNEUMATIC SELF-CENTERING CLAMPS
* Automatic centering mechanism helps to prevent Hi-Lo.* Adjustable for various wall thickness within clamps range* Spring mounted reserve air tank provides sufficient air pressure for lining up incoming pipe joint* For efficient operation, the compressed air pressure should be 180-200 PSI (12.4-13.8 Bar).* Maximim safe working pressure is 225 PSI (15.5 Bar)* Available in sizes 6″-20″* Conversion kits available to adapt clamp for two pipe sizes, starting at 12″

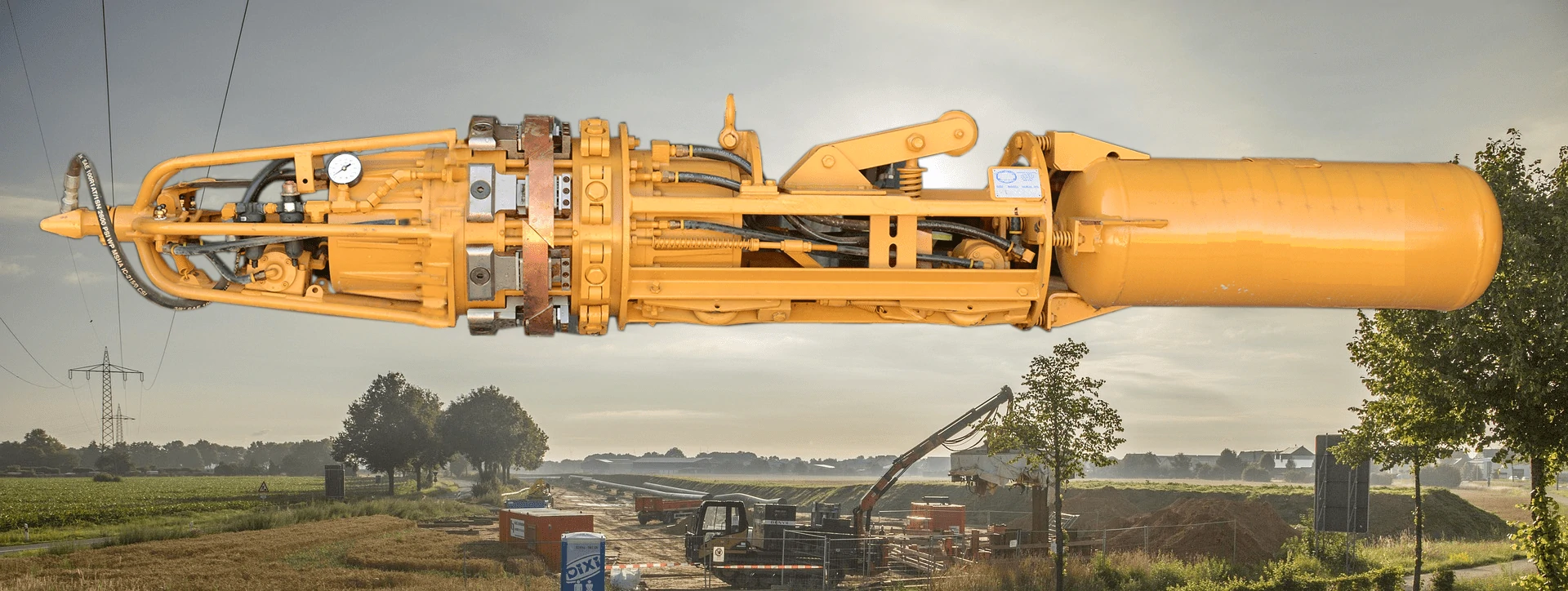

PNEUMATIC CLAMPS WITH ARTICULATED AIR TANK OPTION
* Available in sizes 12″-20″* Clamps 12″-20″ will cover two pipe sizes using conversion kits* Standard clamps are adjustable up to .500 wall thickness, modified clamps are available for heavier wall pipe.* Powered travel drive available on all models* For efficient operation, the compressed air pressure should be 180-200 PSI (12.4-13.8 Bar).* Maximum safe working pressure is 225 PSI (15.5 Bar)* Greater capacity air tank for extended power travel in double jointed pipe* Articulated to negotiate tight bends
Pneumatic Clamp with Copper Backup Shoes
* Available in sizes 6″-60″* Clamps 12″-60″ will cover two pipes sizes by use of conversion kits* Standard clamps are adjustable up to .500 wall thickness, modified clamps are available for heavier wall pipe.* Powered travel drive available on models 12″-60″* For efficient operation, the compressed air pressure should be 180-200 PSI. (12.4-13.8 Bar)* Maximum safe working pressure is 225 PSI (15.5 Bar)
Pneumatic Double Jointer Clamps
* Designed specifically for use with Double Jointer* Available in sizes 16′ to 60′* Adjustable for various wall thickness within clamp’s range* Copper back-up shoes help prevent burn through* For efficient operation, the compressed air pressure should be 180-200 PSI. (12.4-13.8 Bar)* Maximum safe working pressure is 225 PSI (15.5 Bar)
