PIPE FACING MACHINES

No matter what bevel you need on pipe, we are ready to help you every step of the way

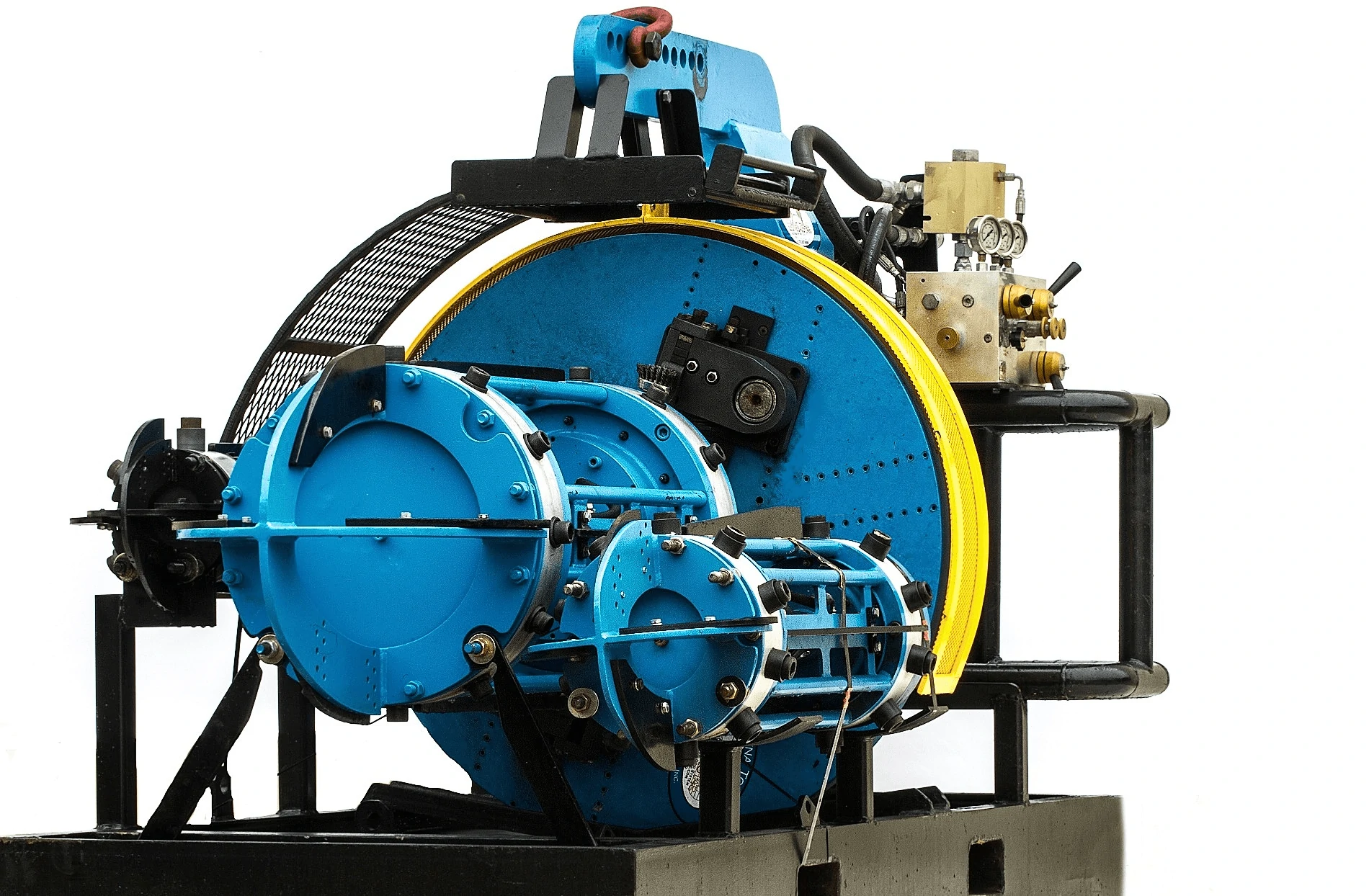

Pipe Facing MachineS (PFM)

Pipe Facing Machine (PFM) Designed and built in Texas
Professionals in the pipeline industry know nothing is more frustrating than receiving a pipe with damaged ends, as it makes harder to adhere to the schedule of the pipeline construction and adds extra cost and work hours. Dyna Torque’s line of pipe facing machine offers the solution to the problem; our range of equipment—designed, developed and manufactured in the USA—provides precise beveling in the fields even in harsh weather conditions. Damaged ends or a need to change bevel design? Dyna Torque Technologies Inc. can assist on you construction needs.
Promise of Quality
We have incorporated our years of experience in the industry in the design, development, and manufacturing of our hydraulic pipe facing machine range. As a result, Dyna Torque’s pipe facing machines— equipped with the highest quality components —are flexible, adaptable, and user-friendly. Fabrication professionals can achieve precise beveling for a range of pipes; with only three frames, pipes ranging from 6″ to 72″ can be beveled for welding.
Unparalleled Flexibility and Versatility
Adherence to modular design philosophy offers our hydraulic pipe facing machine exceptional versatility. When required, the clamp sections of our machine can be changed with no trouble to make the pipe facing equipment compatible with a range of pipe sizes. All that needs to be done is to unbolt the clamp, slide it off, and slid the other size on and re-bolt the clamp. Dyna Torques patented boss connectors make the change a smooth procedure with no need for connecting and disconnecting hydraulic lines.
See all catalog

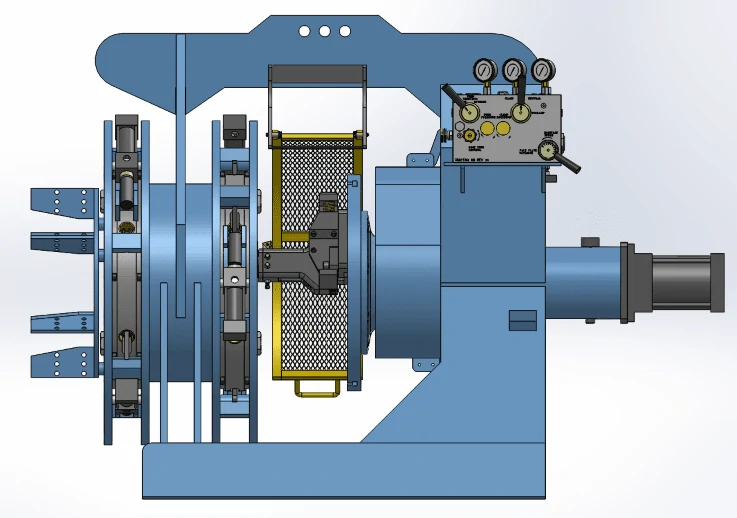

6″-12″ Frame

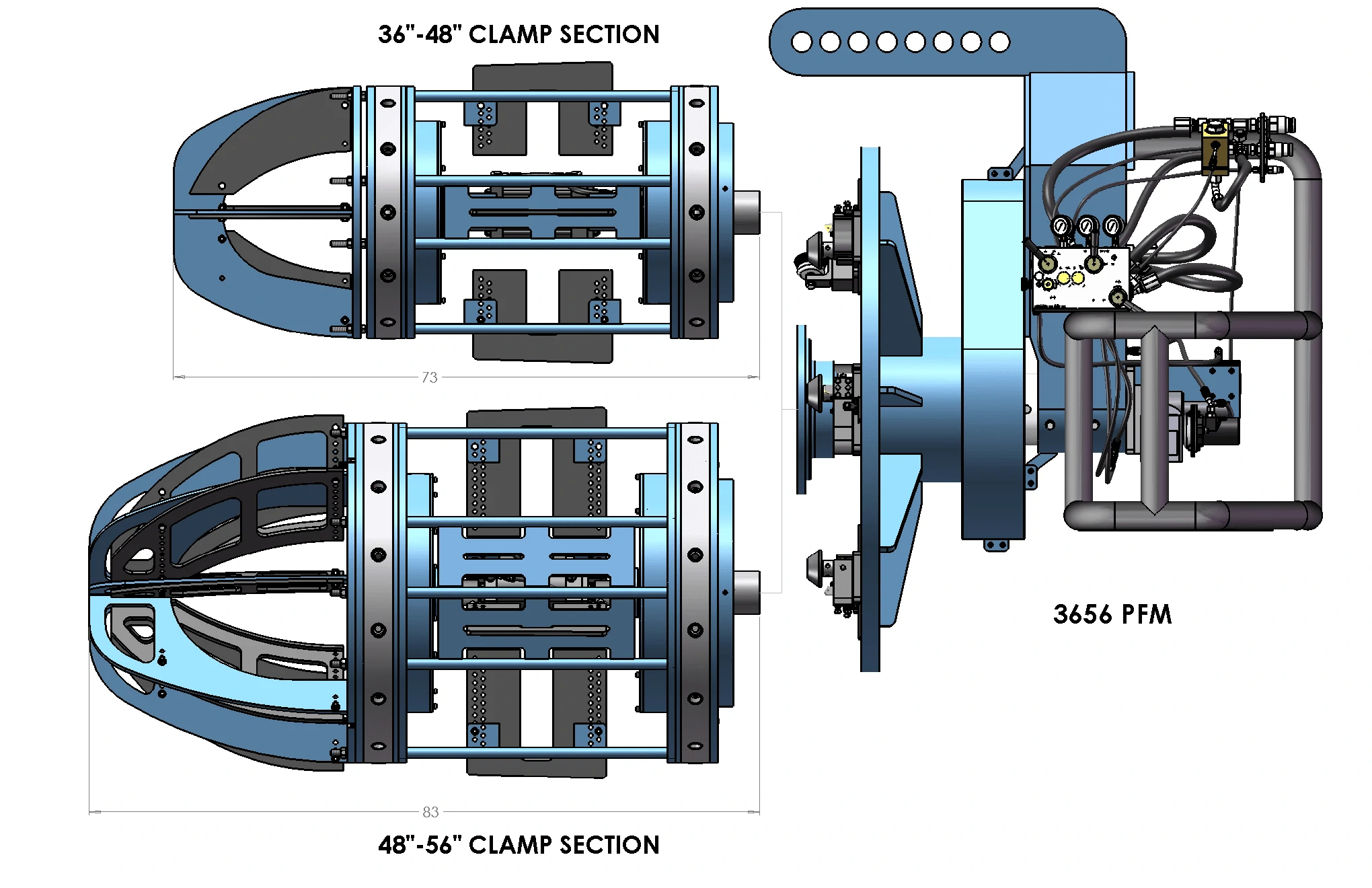

36″-56″ Frame

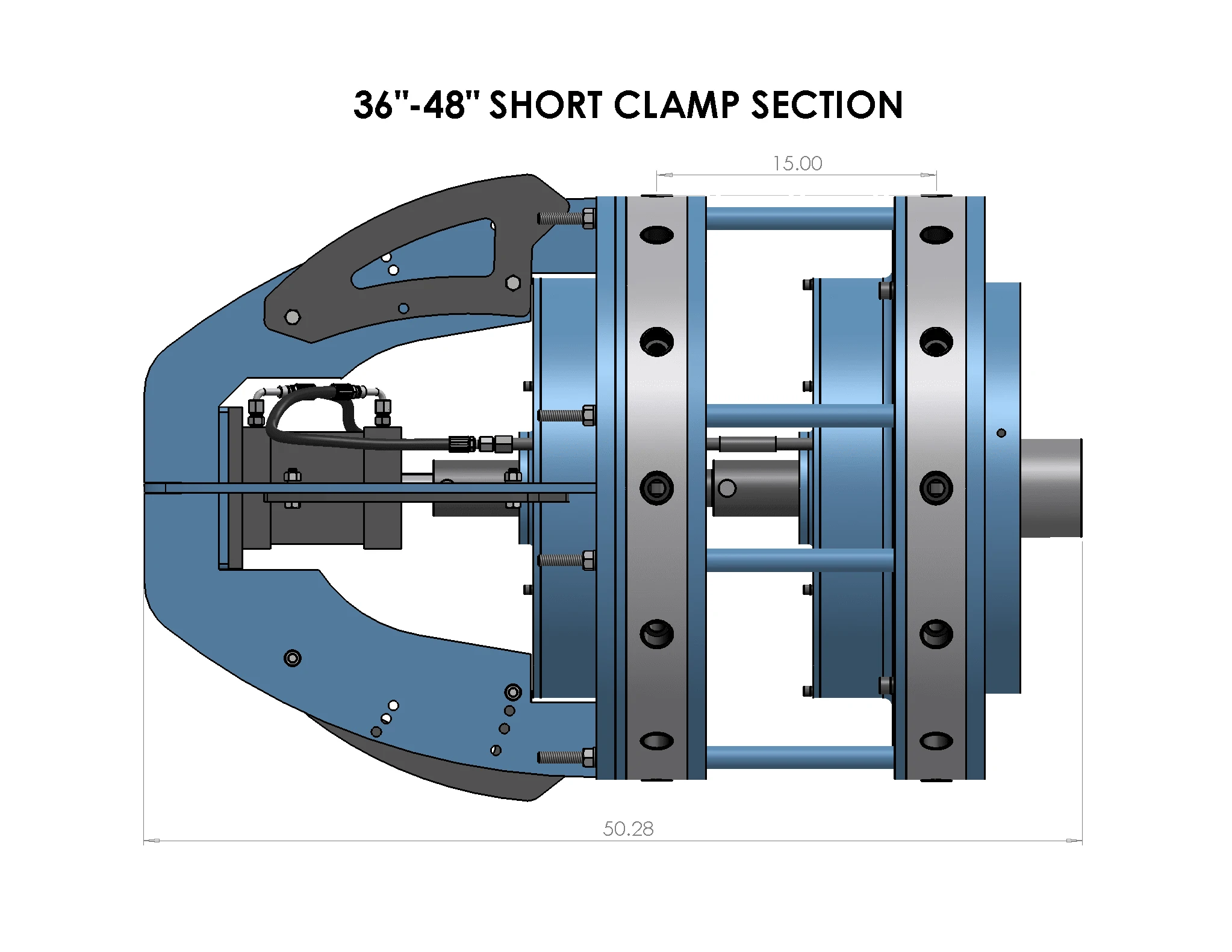

36″-48″ Short Clamp

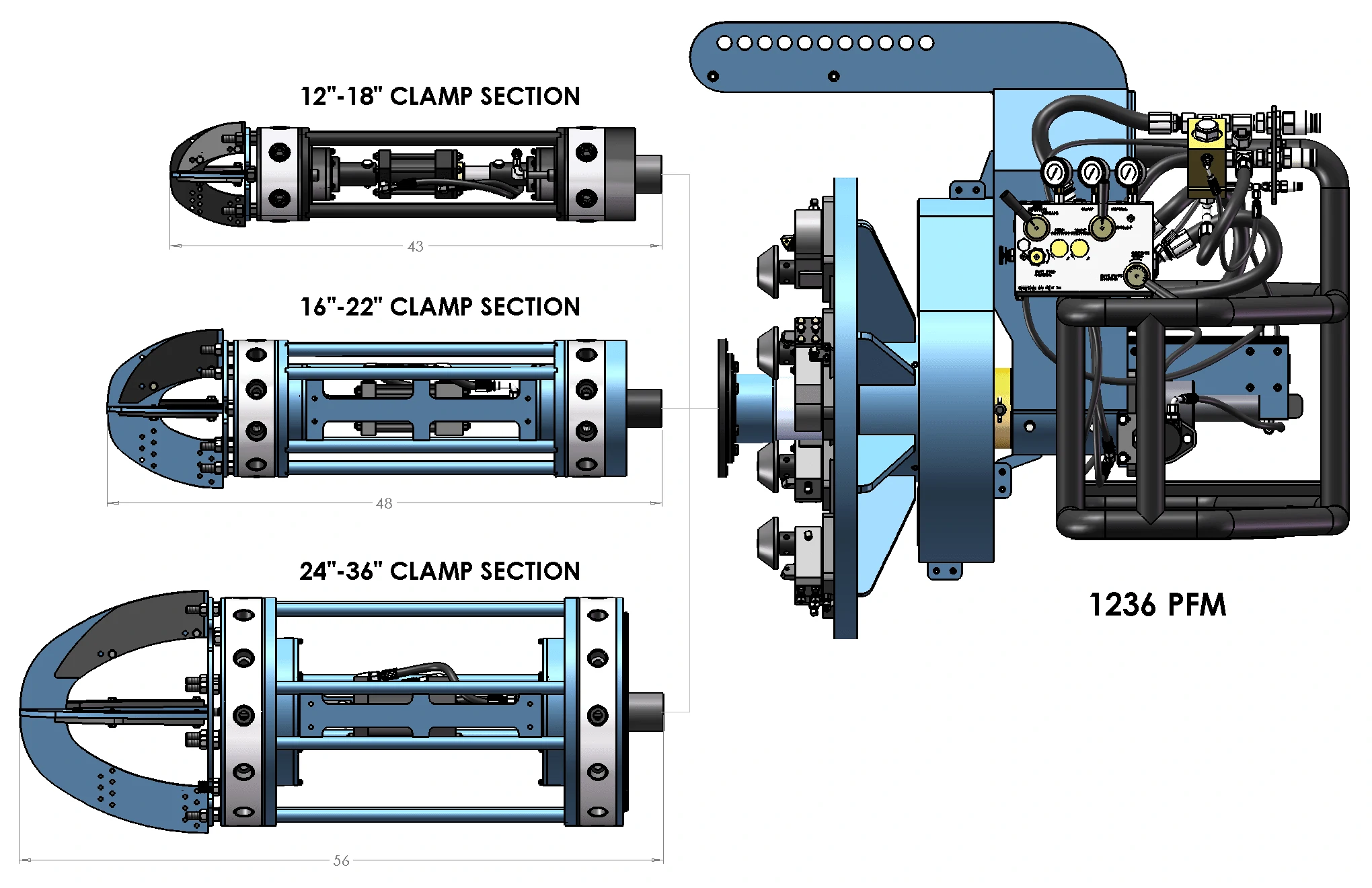

12″-36″ Frame

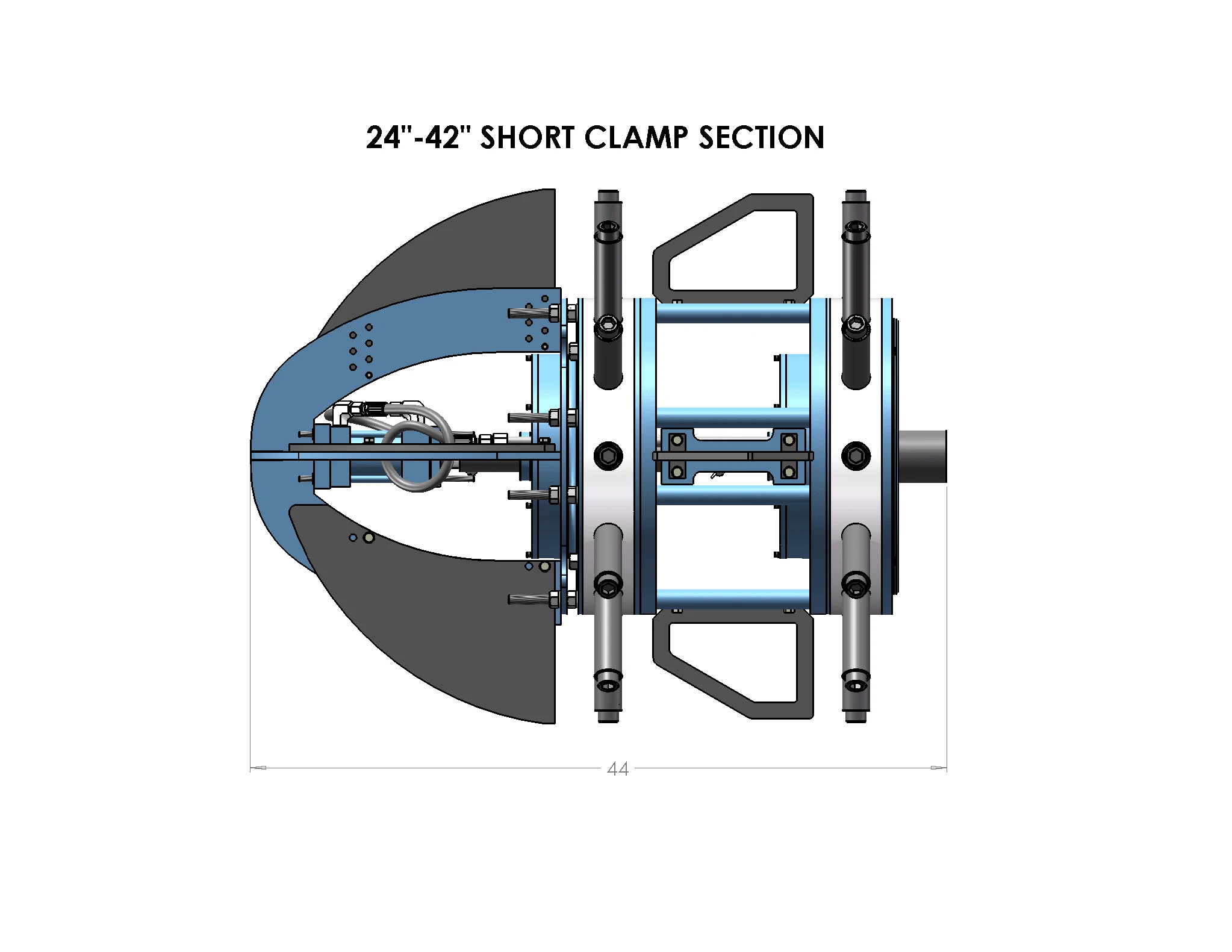

24″-42″ Short Clamp

36″-56″ Short Clamp

STANDARD FEATURES
Capable of beveling pipe ranging from 12″ (25.4 mm) to 72″ (1828.8 mm) with only 3 chassis.Quick and repetitive precision bevels with I.D. contour tracking.Flexibility to adapt to any bevel configuration; our design can offer modified “J,” “U,” and “V” bevel configuration, also including any transition bevels and automatic welding bevel.Brush adapters eliminate the need of internal, as well as external, manual buffing, or any other procedure like sanding and grinding.Simply by changing clamps, a single frame offers compatibility for a multitude of pipe sizes
One Frame, Multiple Pipe Sizes By Changing Clamps
Wide pipe sizes range using one pipe facing machine frame and multiple clamps
BEVEL TYPES
Be it to re-face damaged bevels or to change from standard 30° to narrow groove, our designs can do it all. Reduce weld time and need of filler material to speed up production and reduce overall costs, we offer the best solutions for pipe facing.
